三菱變頻器FR-E700系列外形尺寸圖如下所示(FR-E740外形尺寸、FR-E720S外形尺寸圖 單位為mm)

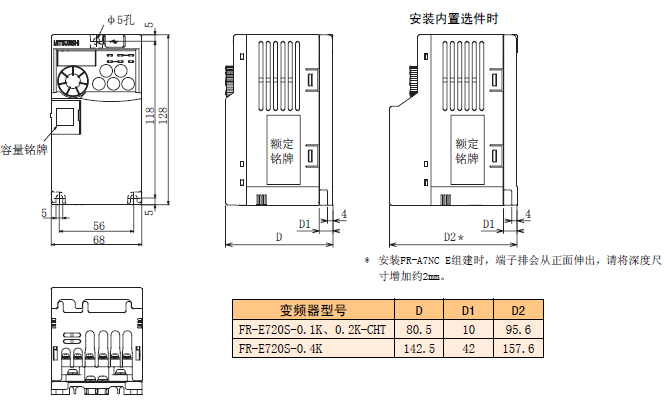

1、FR-E720S-0.1K外形尺寸圖、FR-E720S-0.2K外形尺寸圖、FR-E720S-0.4K外形尺寸圖

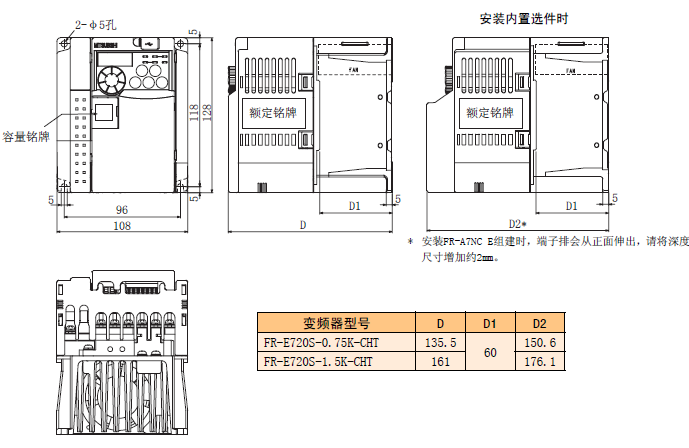

2、FR-E720S-0.75K外形尺寸圖、FR-E720S-1.5K外形尺寸圖

3、FR-E740-0.4K-CHT外形尺寸、FR-E740-0.75K-CHT外形尺寸、FR-E740-1.5K-CHT外形尺寸、FR-E740-2.2K-CHT外形尺寸、FR-E740-3.7K-CHT外形尺寸、FR-E720S-2.2K外形尺寸圖

4、FR-E740-5.5K-CHT外形尺寸圖、FR-E740-7.5K-CHT外形尺寸圖

5、FR-E740-11K-CHT外形尺寸圖、FR-E740-15K-CHT外形尺寸圖
